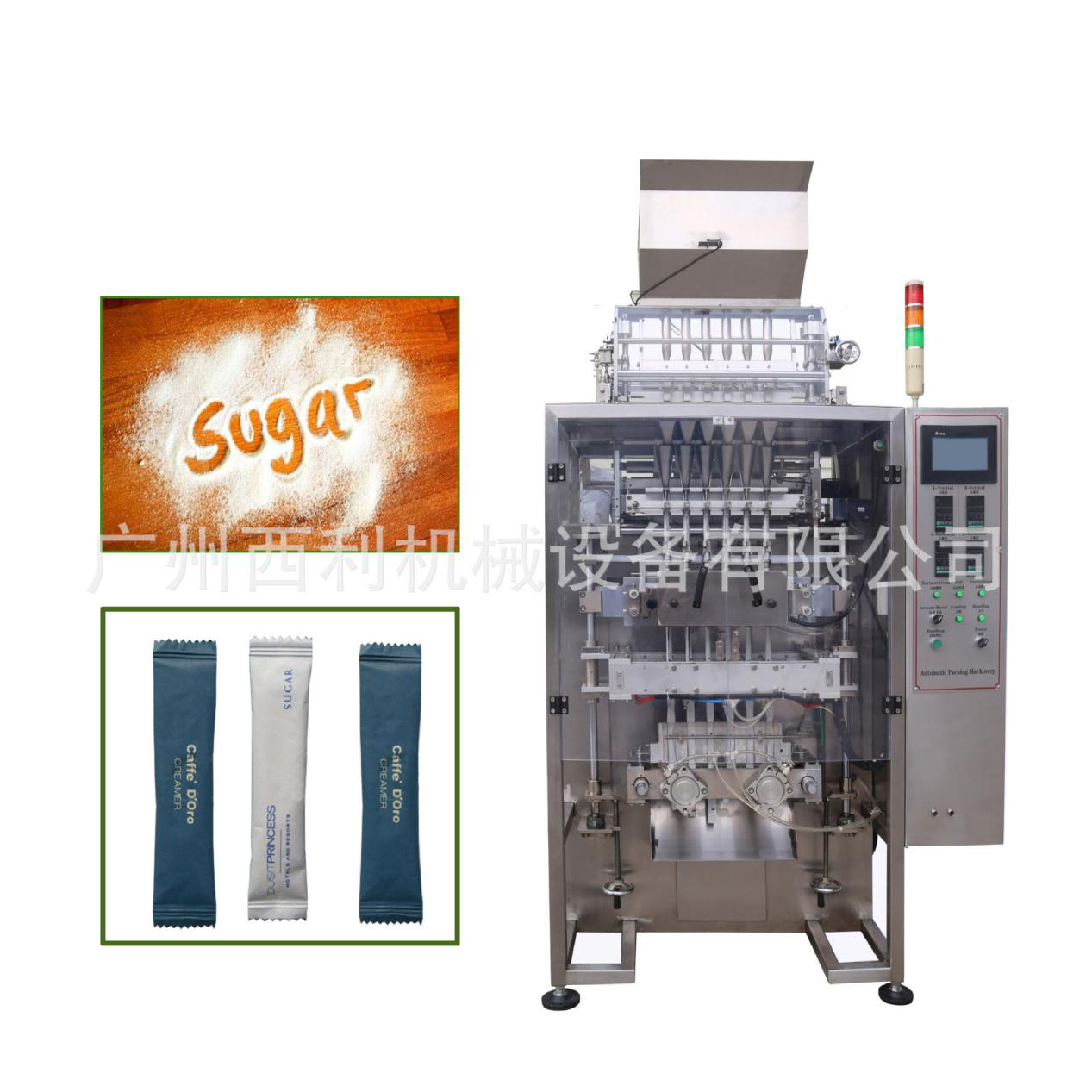

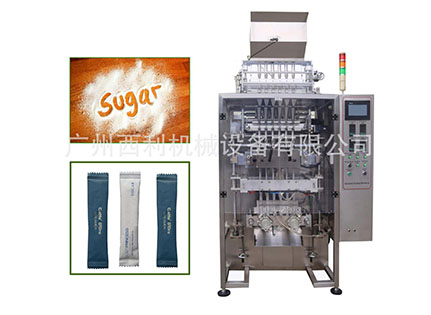

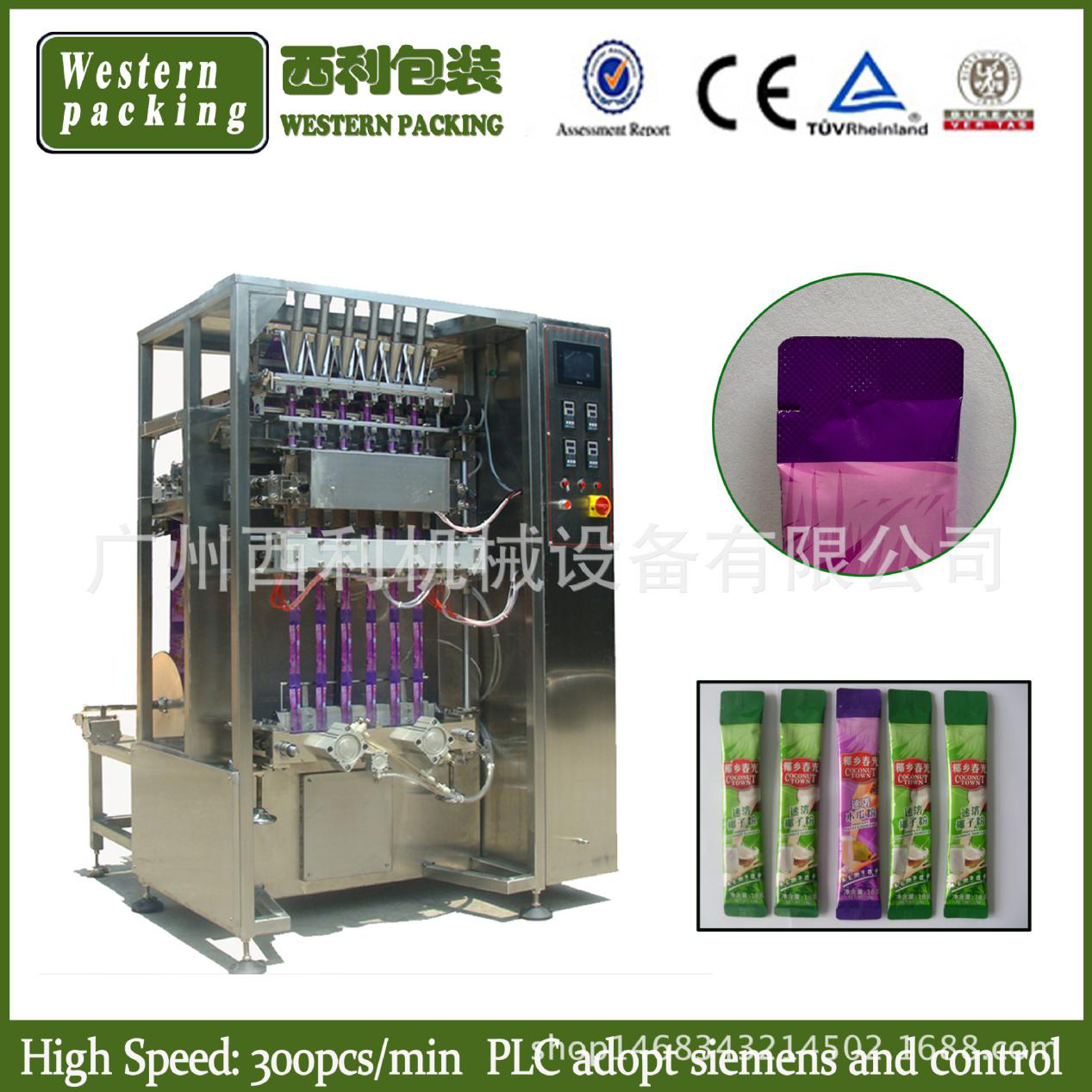

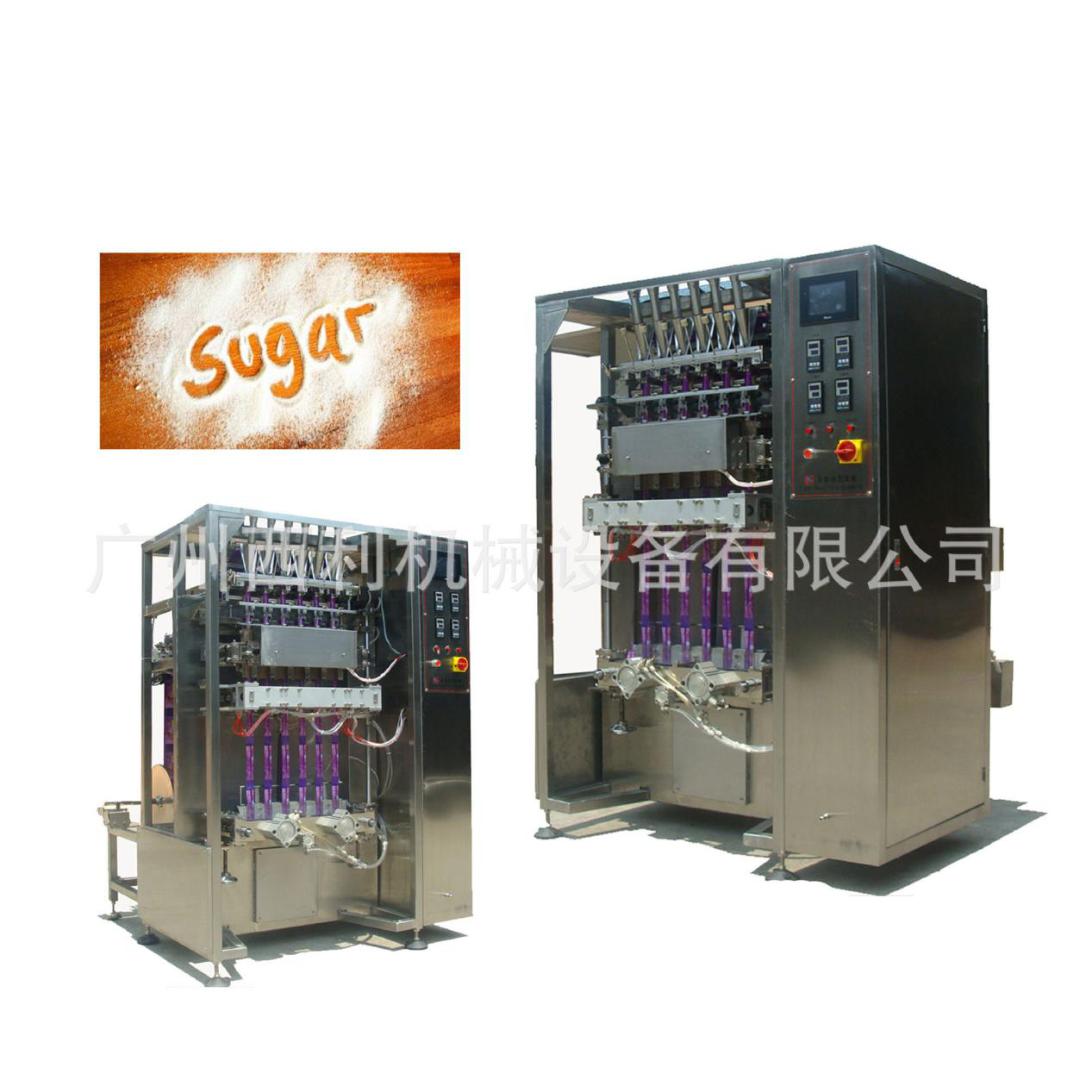

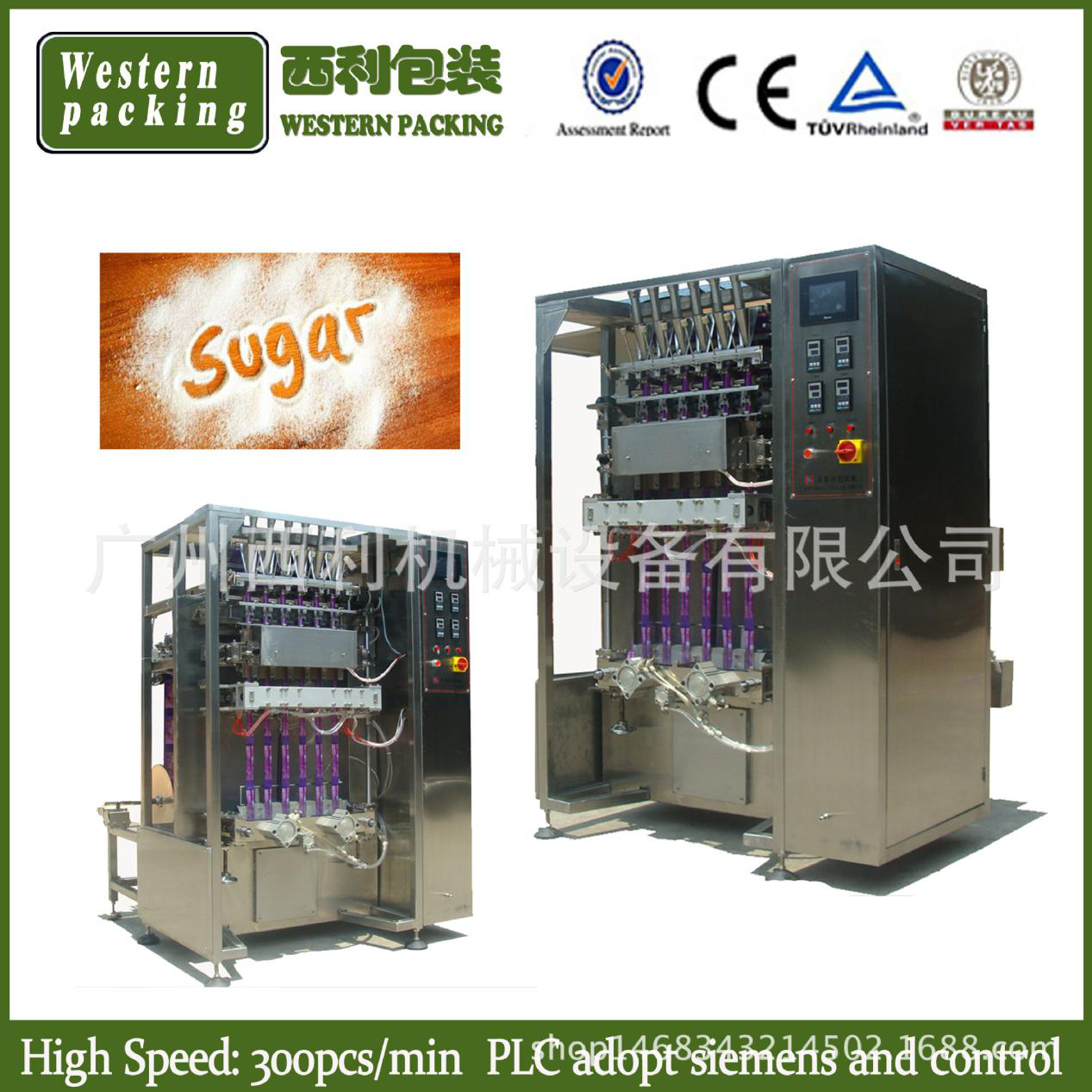

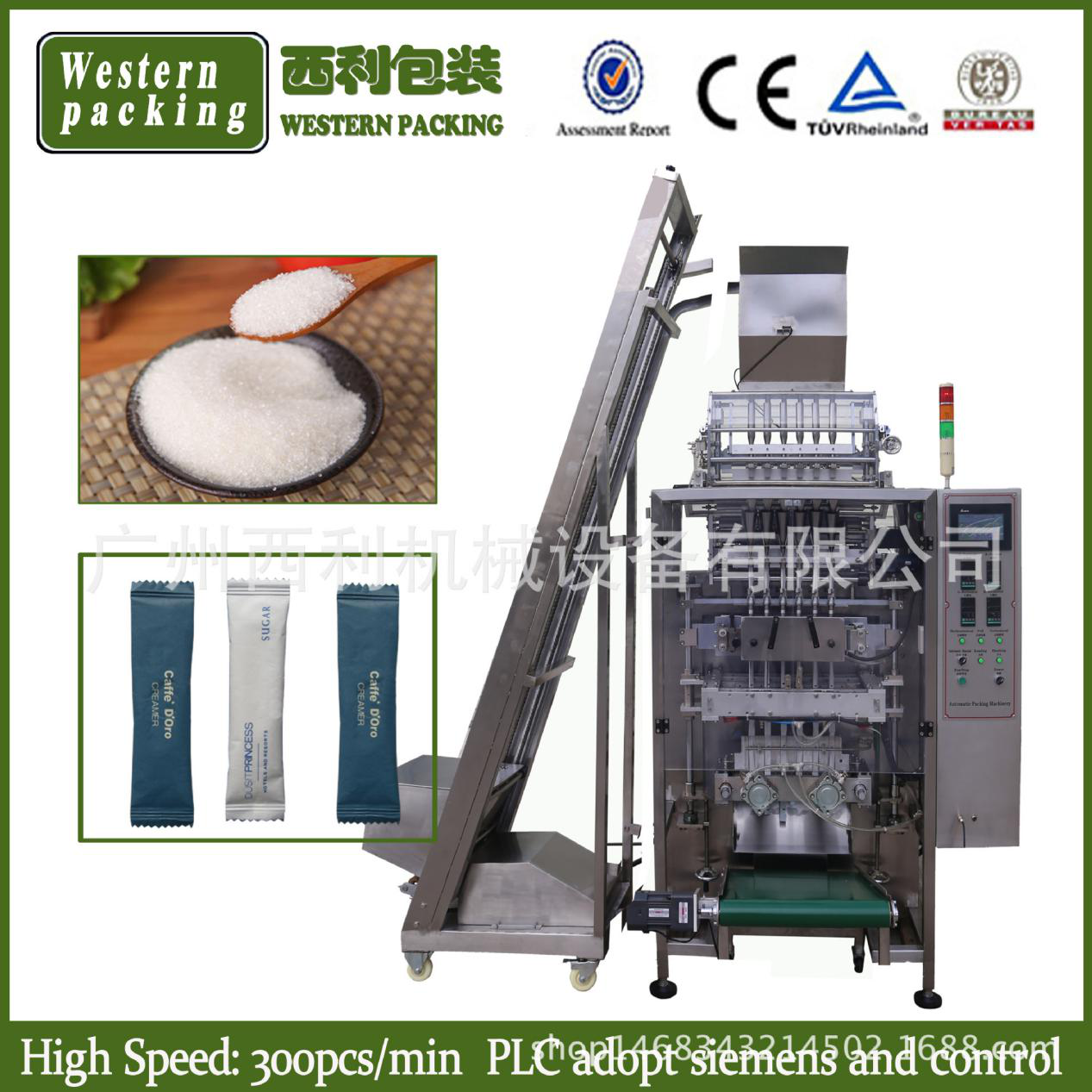

WP-480KB Multi-row Back Sealing Granule Packing Machine

Product name: Multi-row granule packaging machine

Multi-row back-seal granule packaging machine

Name Six-row machine

Model WP-480KB

Cutting method Measuring cup type measurement

Bag type back seal strip bag

Dosage range 0-30 ml

Bag-making size 30-140mm long, single row film width 30-60mm

Packing speed (larger/min) 240 packs

Control method PLC control system + Chinese and English display screen

Air source 0.24cbm/min, 0.6Mpa

Power 2.8kw 3.2kw 3.8kw

Power AC 380V 3-phase 50Hz

Chassis appearance stainless steel plate

Gross weight 450 kg

Dimensions (cm) length 160 width 150 height 285

Functional Overview:

This series of multi-row granular packaging machine adopts advanced PLC and photoelectric control system, which can automatically complete the steps of measuring, bag making, filling, sealing, cutting, printing production date, cutting and tearing. It can be used to package various granular items, such as: sugar, salt, seasoning, coffee, instant beverage, desiccant, washing powder, etc.

Features:

1. All parts of the machine in contact with materials are made of stainless steel, and the whole machine is fully enclosed during operation, which meets the "GMP" requirements of pharmaceutical companies.

2. Adopt high-precision film transport system, PLC program control, advanced touch man-machine interface, photoelectric automatic positioning and tracking, PID and other digital constant temperature control.

3. Simple operation and perfect structure can greatly improve production efficiency and reduce labor costs

Packaging materials: polyester/polyethylene, polyester/aluminized/polyethylene, polyester/aluminum foil/polyethylene, paper/polyethylene, nylon and other heat-sealable composite materials.

Packaging material requirements: thickness ≤ 8 wire, coil inner diameter 75mm, outer diameter ≤ 300mm.
