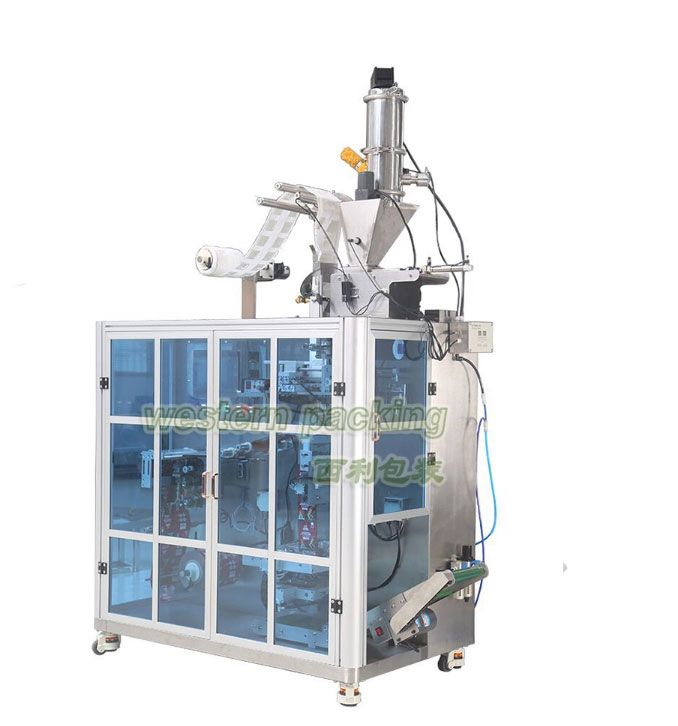

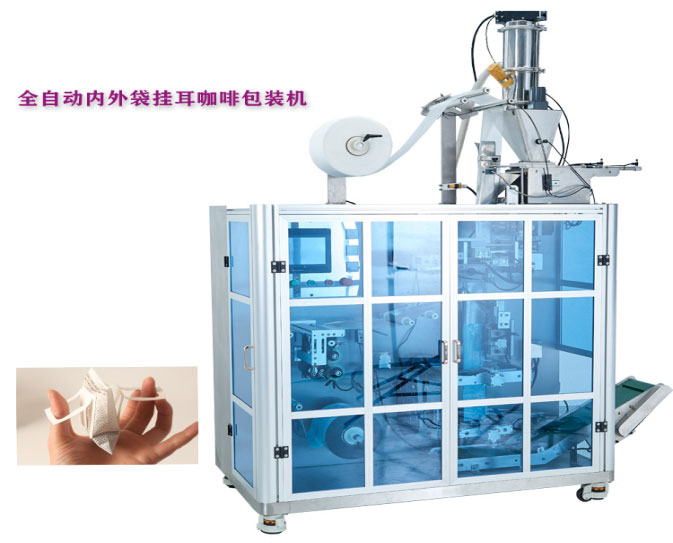

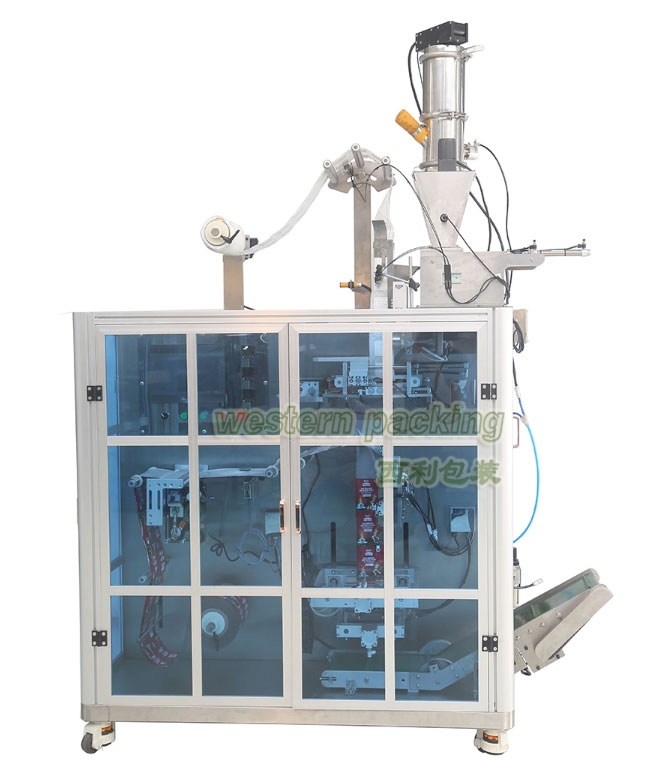

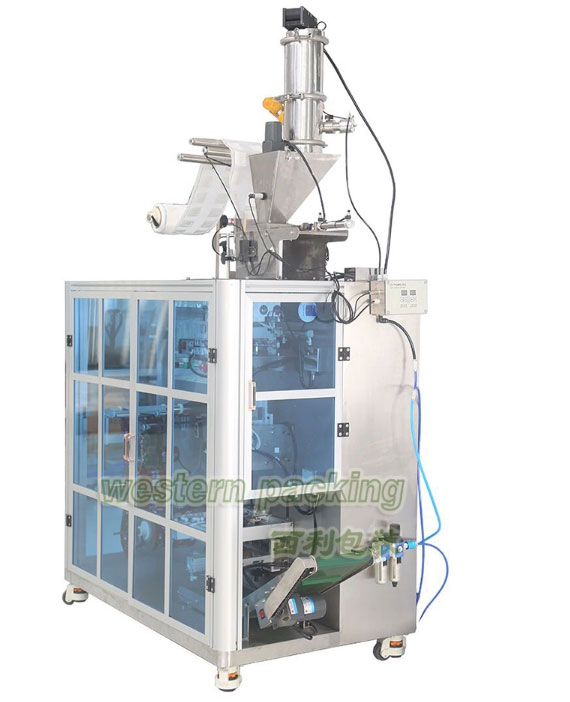

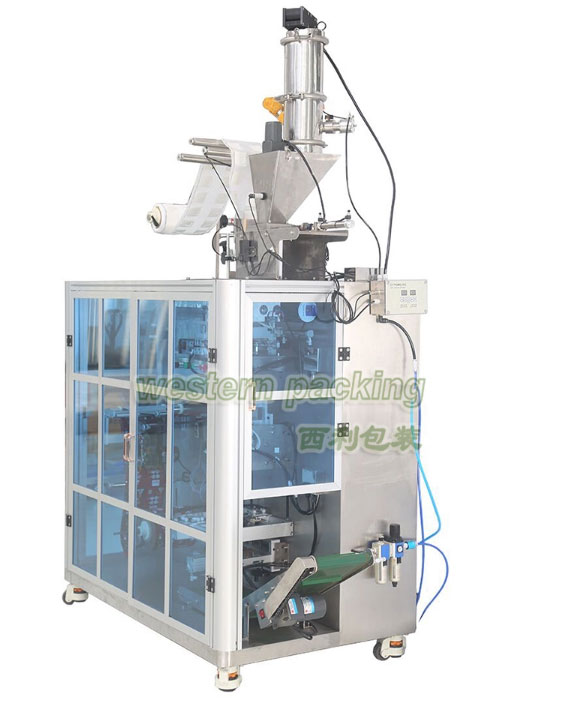

WP-T50 Ultrasonic Hanging Ear Coffee Packaging Machine

Scope of application:

This machine is suitable for one-time packaging of small particles such as ear-hanging coffee, coffee with wire, tea, medicinal tea, health tea, ginseng tea and other small particles.

1. Features of this machine:

1. The outer envelope paper mail stepper motor control, the bag length is stable, and the positioning is accurate.

2. Using PID to adjust the temperature controller, the temperature control is more accurate;

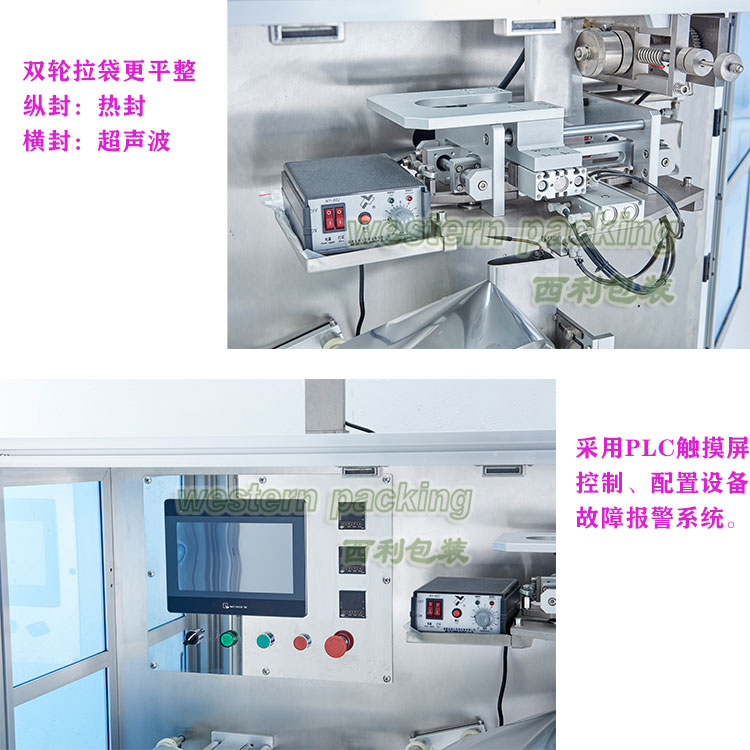

3. Using PLC to control the action of the whole machine, the man-machine interface display, easy to operate;

4. All accessible material parts are made of SUS304 stainless steel to ensure the hygiene and reliability of the product;

5. Part of the working cylinder adopts original imported parts to ensure its accuracy and stability;

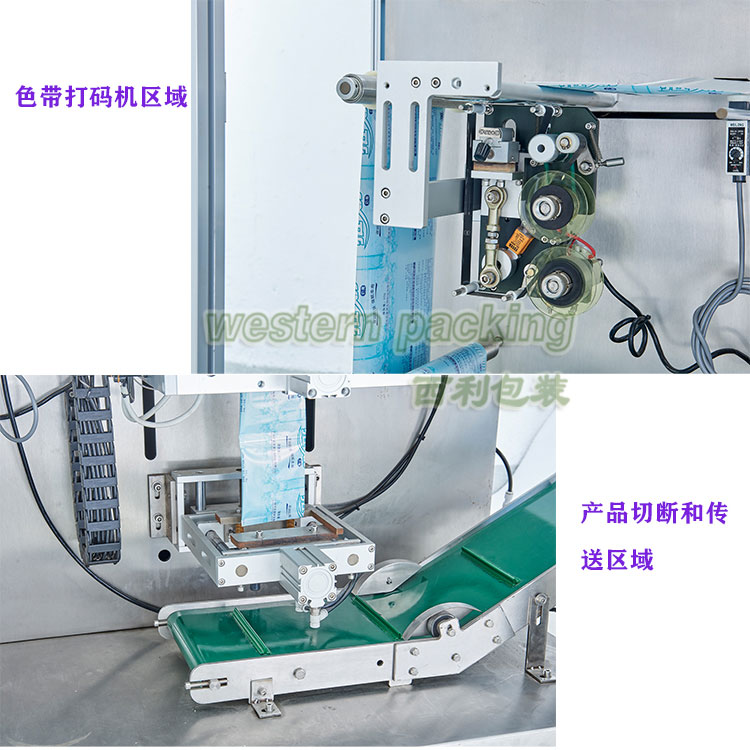

6. The additional device of this machine can complete functions such as flat cutting, date printing, and easy tearing;

7. Ultrasonic and heat-sealing forms can achieve linear incisions, save the filling space inside the ears, and reach 12g packaging capacity;

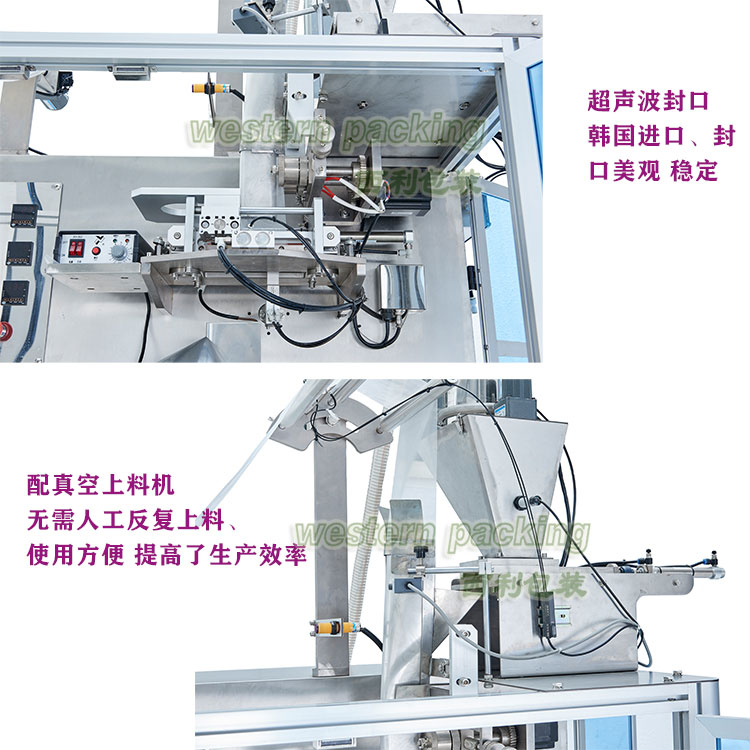

8. Ultrasonic sealing is suitable for cutting all non-woven packaging materials, and the cutting success rate is close to 100%;

9. The equipment can be equipped with nitrogen filling device, date printing device and stirring device, etc.

2. Technical parameters:

Model number: WP-T50

Sealing method: ultrasonic sealing, heat sealing and sealing

Inner bag sealing form: three-side sealing

Outer bag sealing form: three-side sealing

Measuring range: 5-12g/bag (special specifications can be ordered separately)

Production capacity: 30-50 bags/minute

Inner bag size: length 50—75 mm; width 50—75 mm (special specifications can be ordered separately)

Outer bag size: length 85—120 mm; width 75—95 mm (special specifications can be customized)

Input power: 220V/50HZ single phase

Total power: 3.7kw

Equipment size: 1450*700*193MM

Weight: 650KG

Commonly used inner bag packing size: 74*90mm

Commonly used outer bag packaging size: 100*120mm
