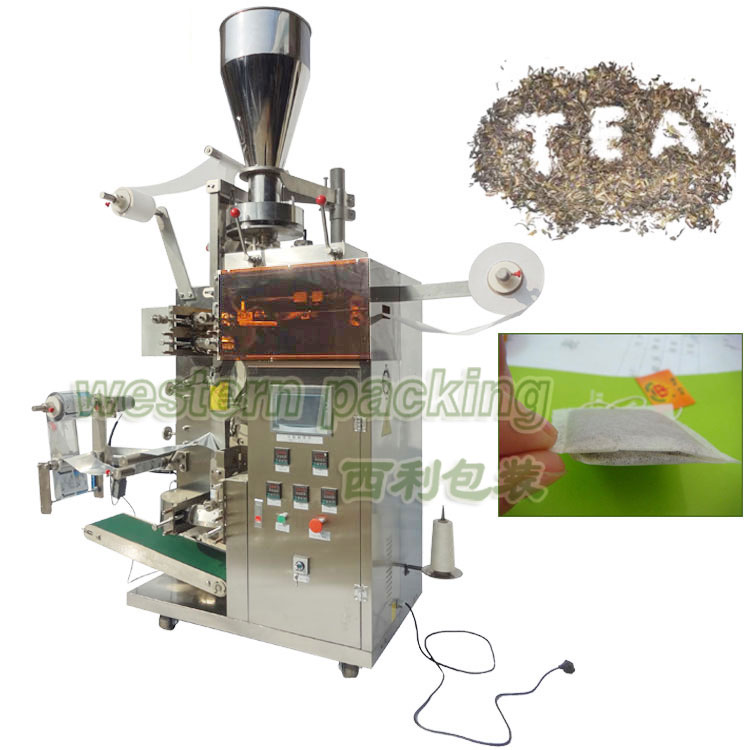

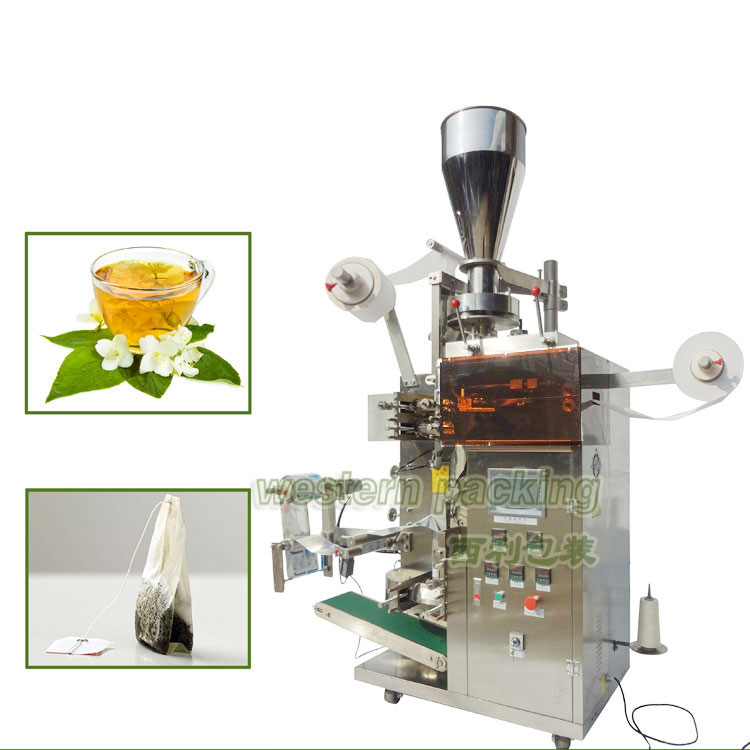

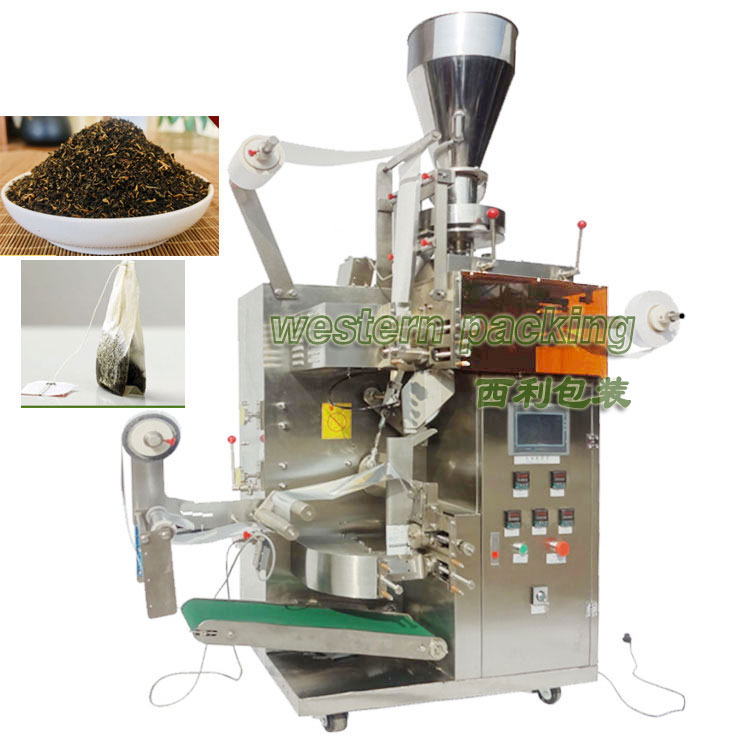

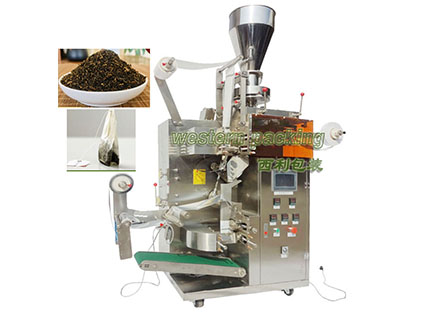

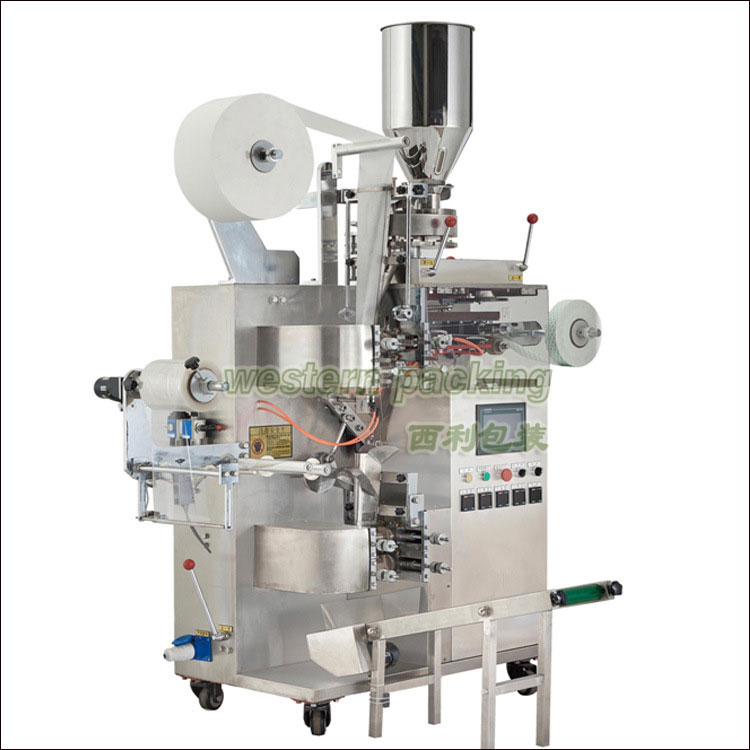

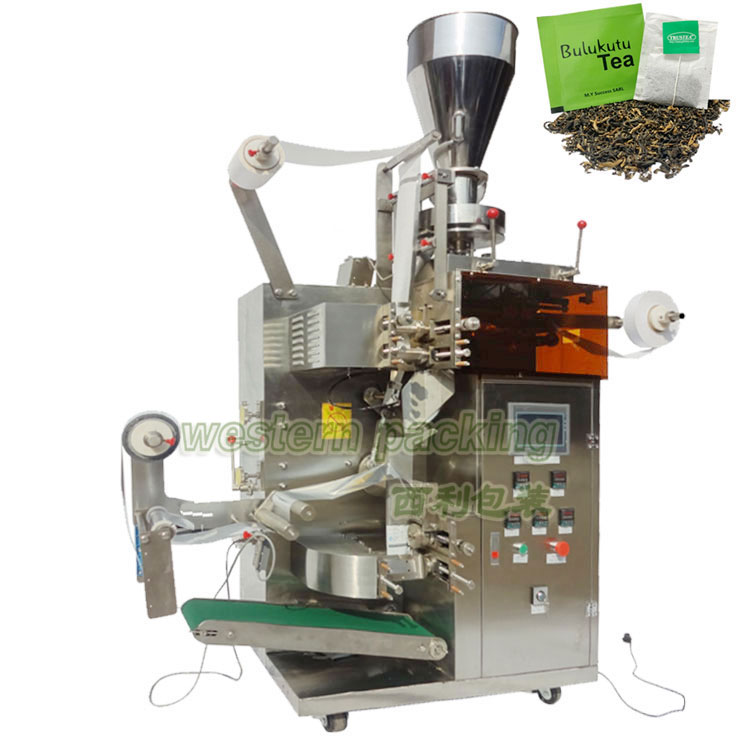

WP-Y17 Automatic tea bag packing machine with line mark inside and outside bag

1. Scope of application:

This machine is suitable for one-time packaging of small particles such as tea, medicinal tea, health tea, grass roots, etc.

Packaging materials: paper/plastic, plastic/plastic, plastic/aluminum/plastic, paper/aluminum/plastic, filter tissue, cotton thread, label paper.

2. Features of this machine:

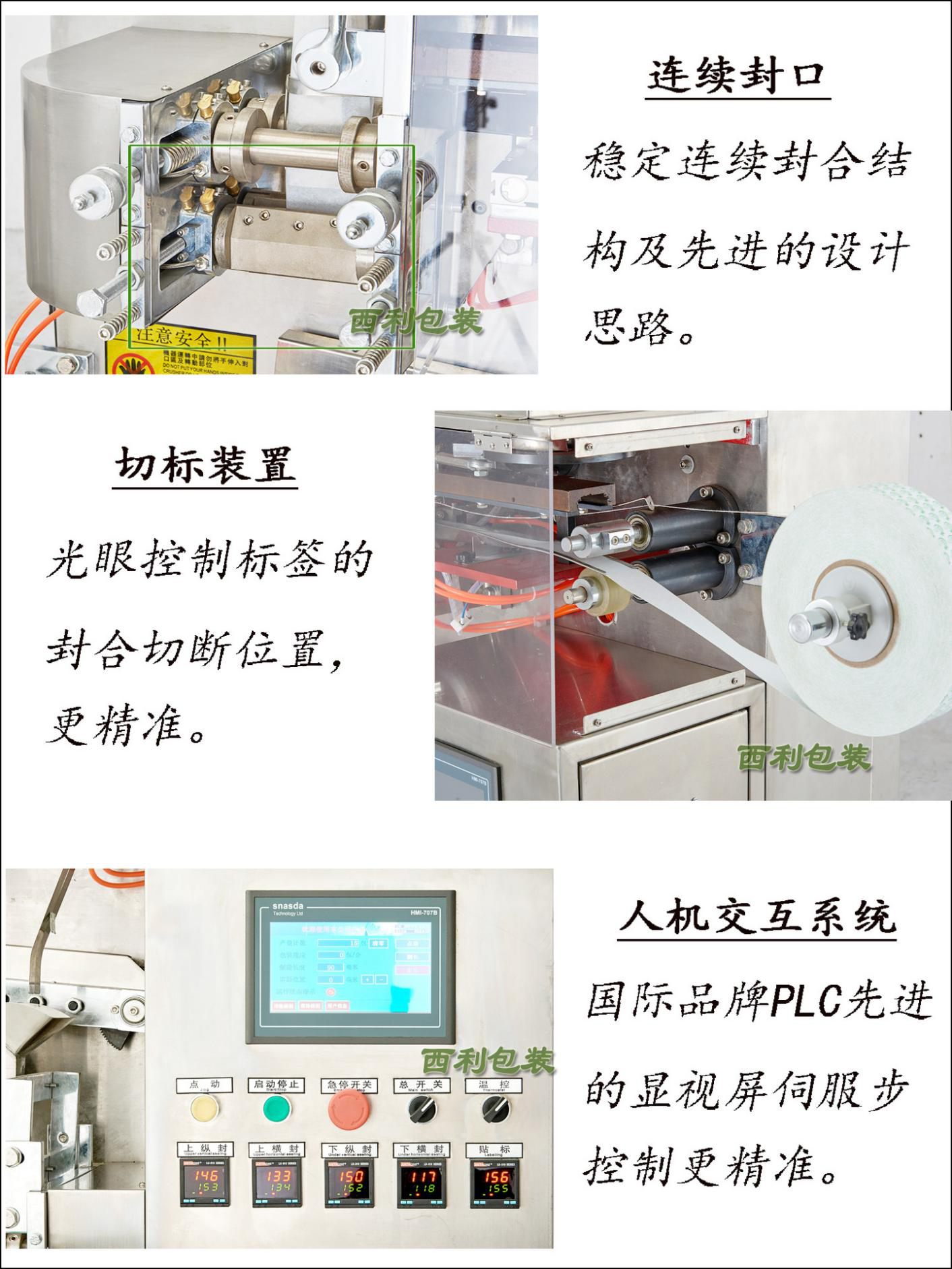

The tea bag packaging machine is a new type of heat-sealing, multi-functional automatic tea bag packaging equipment. The main feature of this machine is that the inner and outer bags are formed at one time, which avoids direct contact between human hands and materials and improves efficiency. The inner bag is made of filter cotton paper, which can be automatically taped with a label, and the outer bag is made of composite paper. The advantage is that: both labeling and outer bag can be positioned by photoelectric, packaging capacity, inner bag, outer bag, label, etc. can be adjusted arbitrarily, and the size of the inner and outer bags can be adjusted according to different needs of users. The additional device of this machine can complete functions such as flat cutting, date printing and easy tearing.

Model number: WP-Y17

Sealing form: three-side sealing

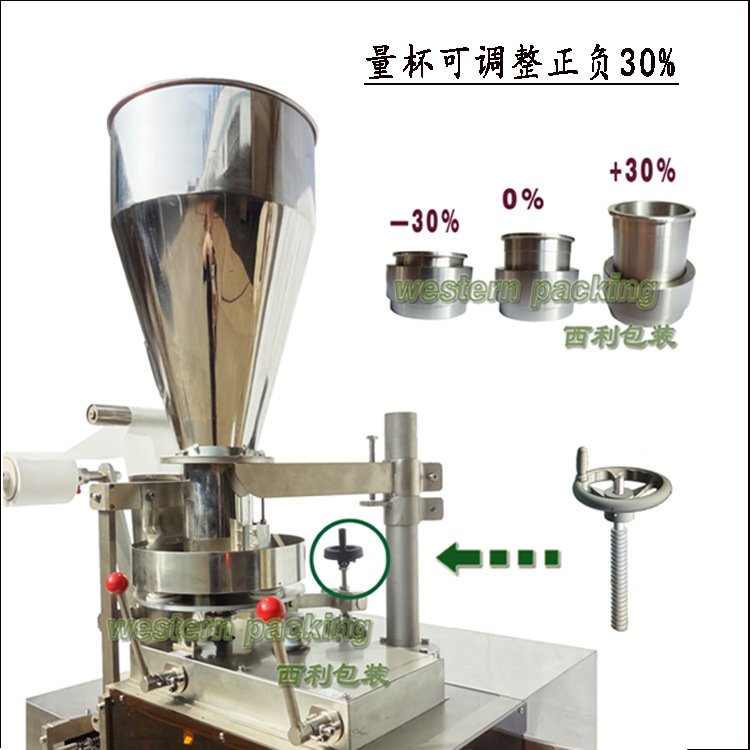

Measuring range: 1-15 g/bag (special specifications can be ordered separately)

Production capacity 30-60 bags/min

Inner bag size: length 50—75 mm; width 50—75 mm (special specifications can be ordered separately)

Outer bag size: length 85—120 mm; width 75—95 mm (special specifications can be ordered separately)

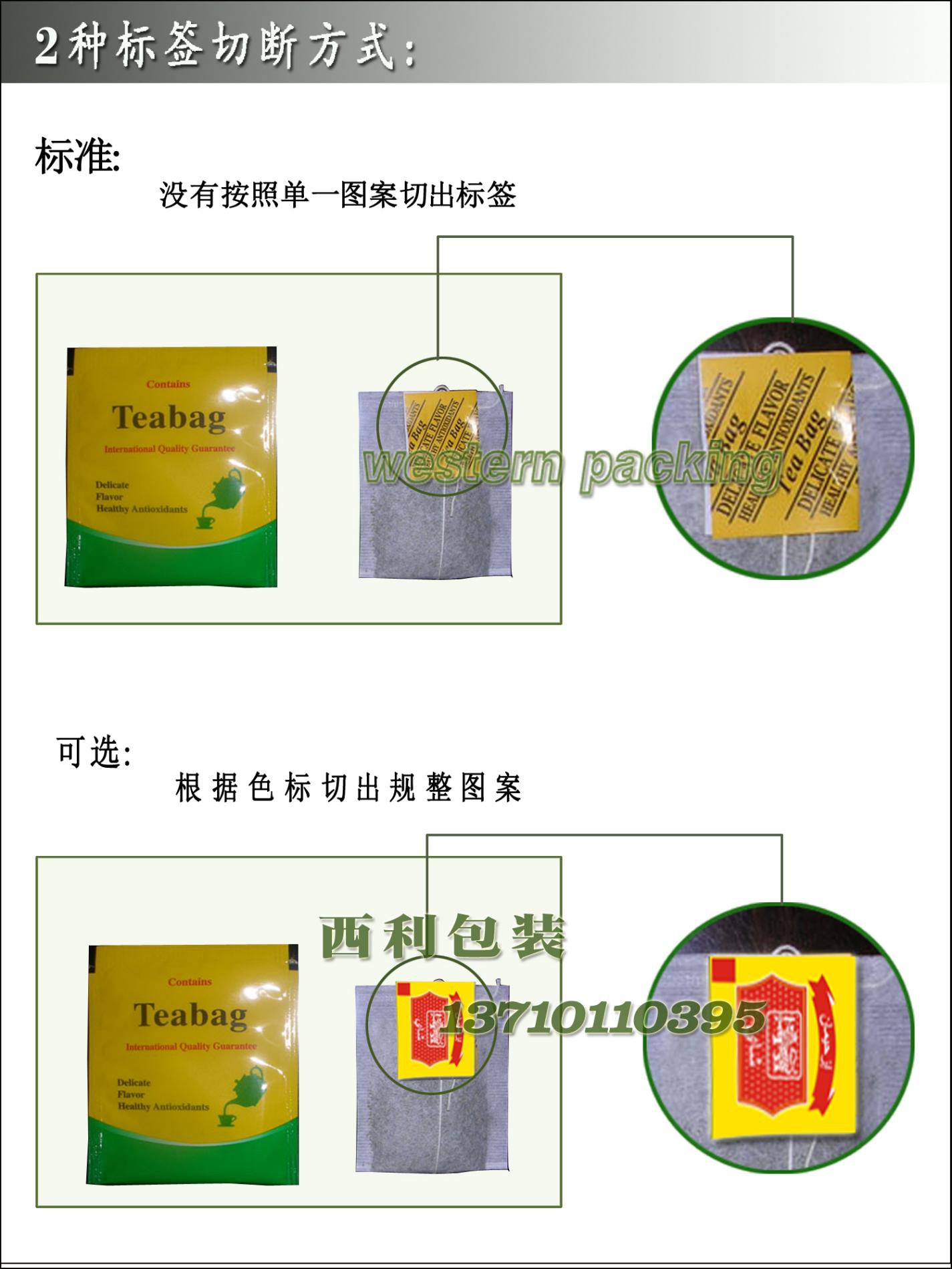

Label size: 25X25 (length * width) (special specifications can be customized)

Input power: 220V/50HZ single phase

Total power: 3.5kw
