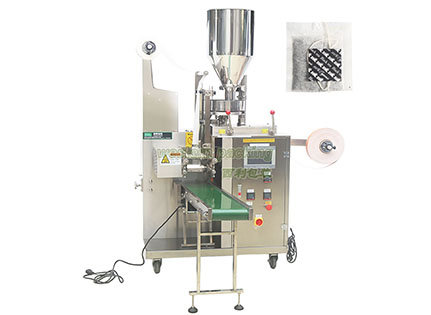

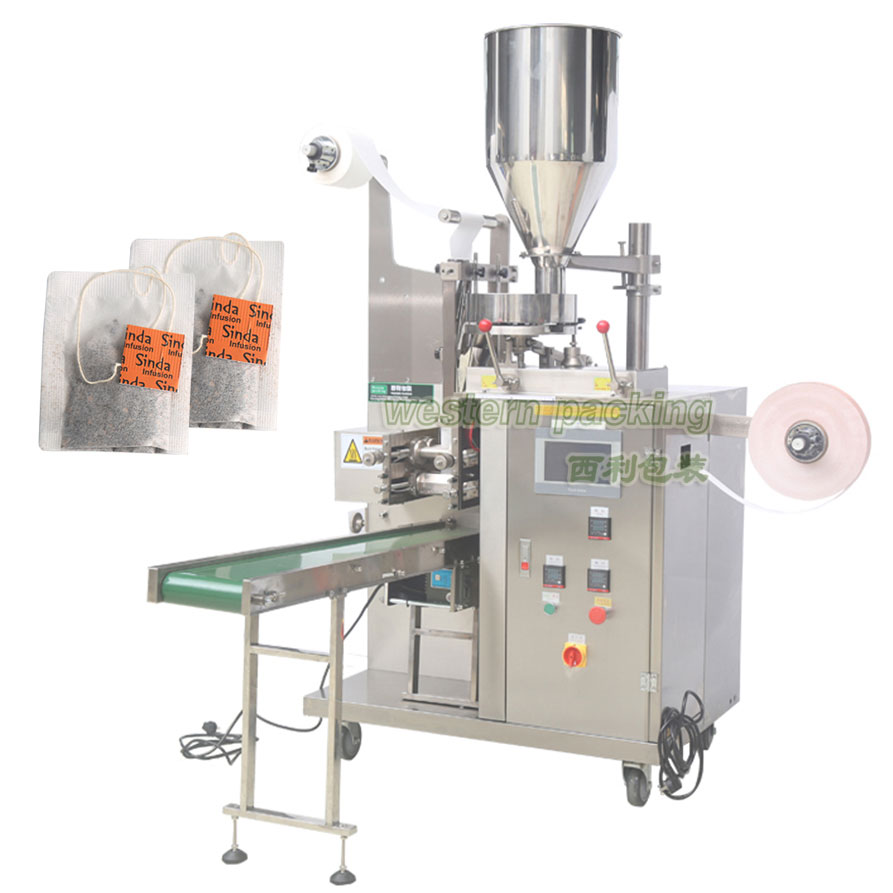

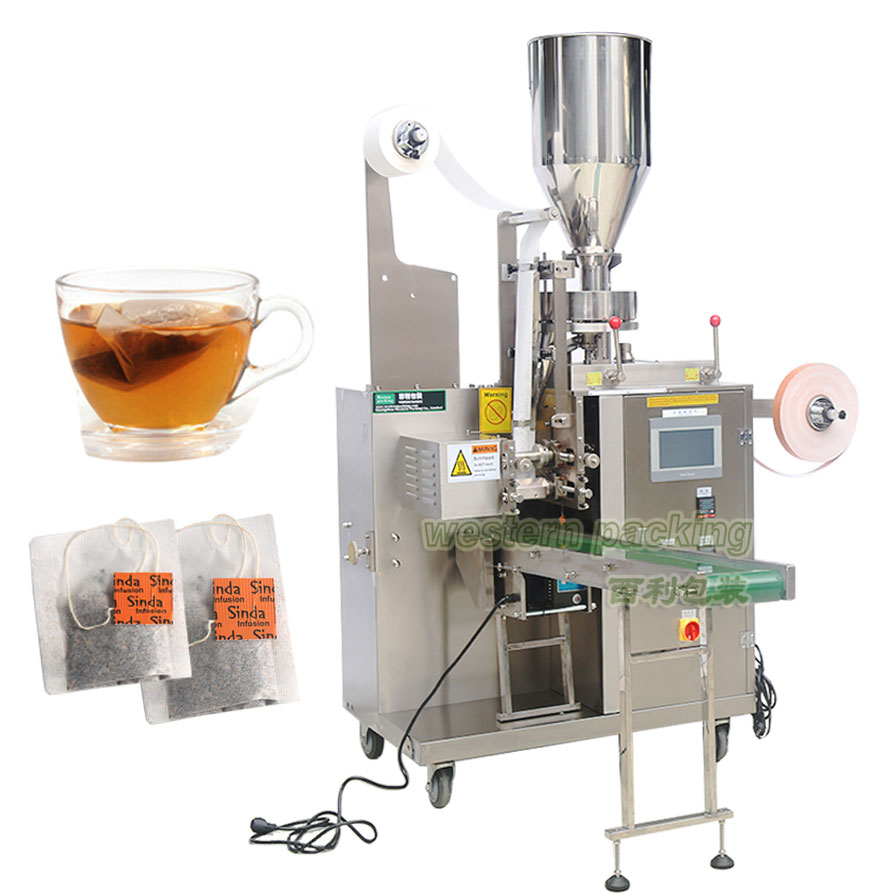

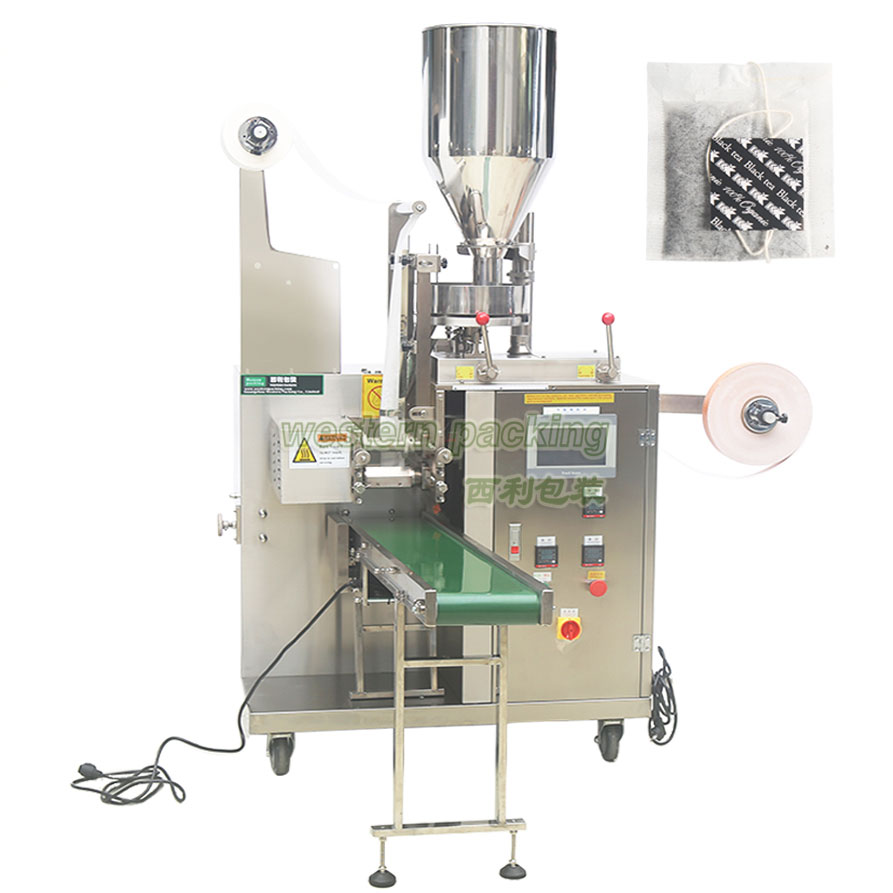

WP-Y16 filter paper tea bag inner bag packaging machine
Features:
1. Used for automatic packaging of broken tea, medicinal tea, coffee, and plant products
2. The packaging bag is equipped with thread lifting and tag, which can automatically complete the functions of bag making, metering, filling, sealing, cutting and counting
3. Packaging materials: tea filter paper, cotton thread: length (L) 160mm, label paper
Sealing method: three-side sealing
technical parameter:
Measuring range: 1-10g
Bag size: length 50-80mm width 45-80mm
Label size: 20*20mm 25*25 mm
Packing speed: 30-60 bags/min
Dimensions: 1250*750*1700
Total power: 220V/50Hz/1.8kw
Product number Model Number | WP-Y16 |
Production capacity (bags/min) Capacity(bag/mini) | 40-45 bags per minute |
Measuring range (ml) Range of measurement(g) | 1-15g |
Bag size (mm) Bag size(mm) | Length (L) 50-80 Width (W) 40-80 |
Total power (Watts) Power(W) | 1800w |
voltage Source voltage | 220V/50Hz |
Packaging Materials Packing material | Tea filter paper non-woven fabric PLA non-woven fabric paper/plastic, plastic/plastic, plastic/aluminum/plastic, paper/aluminum/plastic, etc. Paper/PE,PET/AL foil/PE,PET/PE,NYLON/PE,Tea-leaf filtering paper etc. |
Net weight (kg) Packing weight(kg) | 300kg |
Dimensions Overall dimensions | 1250*750*1700MM（LxWxH） |
